Transformer Bushings

FGRBLW

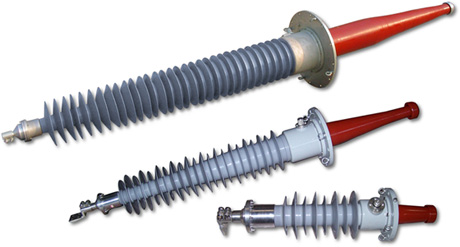

Dry Type Transformer Bushing
Reliable, Explosion-Free High-Voltage Transformer Bushings that Never Need Maintenance.

HV DryStrong™ uses our RIF™ technology (Resin Impregnated Fiberglass): tough and resilient to mechanical and thermal stresses.

Non-oil, non-gas, non-porcelain.

Explosion-free, maintenance-free, and environmentally friendly
The dielectric dissipation and partial discharge of RHM’s transformer bushings are low thanks to its new insulating material and refined structure. Our unique Resin Impregnated Fiberglass Insulated (RIF™) condenser structure allows for strong and resilient service in addition to high resistance to thermal shocks. The bushing has a high mechanical load-bearing capacity resulting in a longer lifespan. It is also truly explosion-free.

The adhesion between the electrode and insulation material is superior because of our unique manufacturing process. This provides insulation with a consistent and lasting performance.

The internal stress of the capacitive core has been decreased significantly by our patented capacitive core internal stress division cushion technology, which improves resistance to cold and heat impulses.

Our dry transformer bushing design features fiberglass impregnated with epoxy resin, which makes all interface seals simpler and safer.

As for all of our products, we use exclusively silicone rubber as external insulation. Silicone rubber, a growing choice throughout the industry, is stronger than porcelain, lightweight, and non-polluting.


Customer benefits:

		Totally safe, no risk of explosion.
		Totally maintenance-free, low cost of ownership.
		Superior resistance to mechanical and thermal stresses.
		Environmentally friendly – no risk of toxic leakage.
		Sealed and impervious to water and pollution.

More Information
To view our technical papers, click here:
